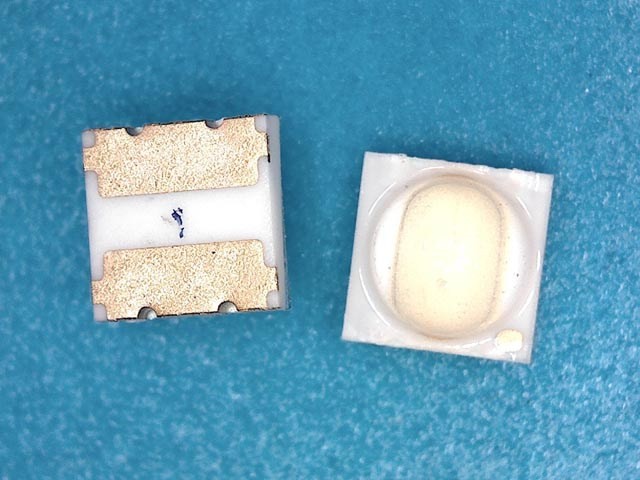

LED podsvietenie dióda 2828 0,8W 6V SHARP
Katalógové číslo:
4300031600
LED dióda 2,8 x 2,8 x 1,9 mm s výkonom 0,8W a napätím 6V od výrobcu SHARP. Celý popis
1,06 €
bez DPH: 0,86 €
Na sklade > 25 ks
Možnosti doručenia
Skladem na prodejně
AME Hradec Králové
LED podsvietenie dióda 2828 0,8W 6V SHARP
Rozmery: 2,8 x 2,8 x 1,9 mm
Model: GM2BB1ZF2CEM
Výrobca: SHARP
Technické parametre:
• Forward Current (IF): 120 mA
• Pulse Forward Current (IFp): 135 mA
• Reverse Current (IR): 10 µA
• Reverse Voltage (VR): 5 V
• Power Dissipation (PD): 826 mW
• Operating Temperature (Topr): -30 - +85 °C
• Storage Temperature (Tstg): -40 - +100 °C
• Soldering Temperature (Tsld): Reflow Soldering: 260 °C (10 s), Hand Soldering: 350 °C (3 s)
• Junction Temperature (Tj): 120 °C
• Forward Voltage (VF): 6.02 - 6.88 V (85 mA)
• Luminous Flux (LM): 33.11 - 43.89 lm (85 mA)
• Luminous Intensity (IV): cd (85 mA)
• Wavelength (nm): nm (85 mA)
• CIE: x=0.2430, y=0.2110 (85 mA)
• Color Correlated Temperature (CCT):
• CRI: 80
• Viewing angle: °
Typ puzdra LED: 2.8×2.8×1.9 mm (d x š x v)
Rozmery: 2,8 x 2,8 x 1,9 mm
Model: GM2BB1ZF2CEM
Výrobca: SHARP
Technické parametre:
• Forward Current (IF): 120 mA
• Pulse Forward Current (IFp): 135 mA
• Reverse Current (IR): 10 µA
• Reverse Voltage (VR): 5 V
• Power Dissipation (PD): 826 mW
• Operating Temperature (Topr): -30 - +85 °C
• Storage Temperature (Tstg): -40 - +100 °C
• Soldering Temperature (Tsld): Reflow Soldering: 260 °C (10 s), Hand Soldering: 350 °C (3 s)
• Junction Temperature (Tj): 120 °C
• Forward Voltage (VF): 6.02 - 6.88 V (85 mA)
• Luminous Flux (LM): 33.11 - 43.89 lm (85 mA)
• Luminous Intensity (IV): cd (85 mA)
• Wavelength (nm): nm (85 mA)
• CIE: x=0.2430, y=0.2110 (85 mA)
• Color Correlated Temperature (CCT):
• CRI: 80
• Viewing angle: °
Typ puzdra LED: 2.8×2.8×1.9 mm (d x š x v)
