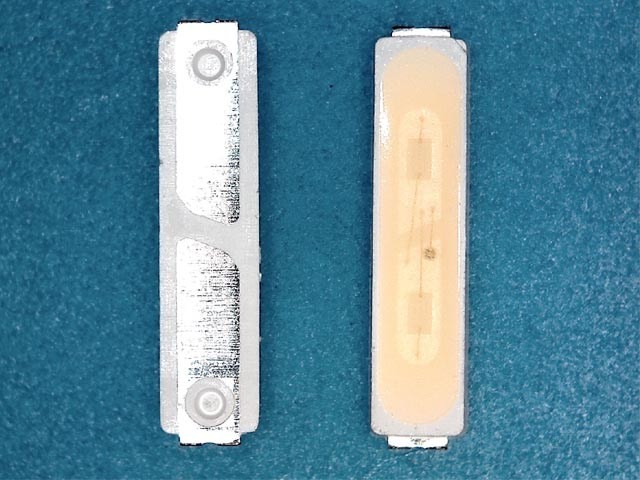

LED dióda 8520 0,5W 3V WM82T2F
Katalógové číslo:
4300031700
LED dióda 8520, 0,5W, 3V, rozmery 8,5 x 2,0 x 0,65 mm. Celý popis
1,10 €
bez DPH: 0,89 €
Na sklade > 25 ks
Možnosti doručenia
Skladem na prodejně
AME Hradec Králové
LED dióda 8520 0,5W 3V WM82T2F
Rozmery: 8,5 x 2,0 x 0,65 mm
Technické parametre:
MODEL NAME: WM82T2F
Výrobce: WOOREEENL
Forward Current (IF): 150mA
Pulse Forward Current (IFp): 250mA
Reverse Current (IR): 50mA
Reverse Voltage (VR): 0.7-1.2V (5mA)
Power Dissipation (PD): 0.684W
Operating Temperature (Topr): -30 až +85 °C
Storage Temperature (Tstg): -40 až +100 °C
Soldering Temperature (Tsld): Reflow Soldering: 260 °C po dobu 10 s
Hand Soldering: 350 °C po dobu 3 s
Junction Temperature (Tj): 110 °C
Forward Voltage (VF): 2.8-3.6V (120mA)
Luminous Flux (CD): 11cd (120mA)
Color Correlated Temperature (CCT): K
CRI: 80°
Viewing angle: 120°
Lead Frame Type LED Package: 8.5×2.0×0.65 mm (L×W×H)
