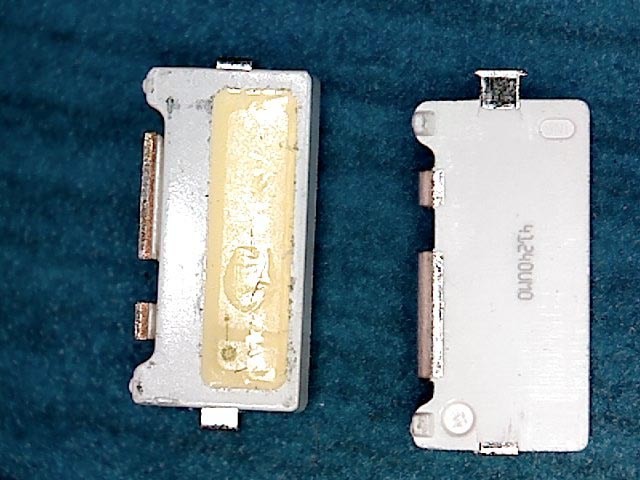

LED dióda 7032 3V Samsung pre podsvietenie
Katalógové číslo:
4300016400
Značka:
Samsung
LED dióda 7032, 3V, rozmery 7,0 x 3,2 x 1,3 mm, ideálna pre podsvietenie. Celý popis
0,45 €
bez DPH: 0,37 €
Na sklade > 25 ks
Možnosti doručenia
Skladem na prodejně
AME Hradec Králové
LED dióda 7032 3V Samsung pre podsvietenie
Rozmery: 7,0 x 3,2 x 1,3 mm
MODEL NAME: SPBWH1732S2LVD1BIB 7032 LED
Výrobca: SAMSUNG
Technické parametre:
- Forward Current (IF): 180 mA
- Pulse Forward Current (IFp): mA
- Reverse Current (IR): µA
- Reverse Voltage (VR): 0.7-1.2 V (5 mA)
- Power Dissipation (PD): W
- Operating Temperature (Topr): -40 až +85 °C
- Storage Temperature (Tstg): -40 až +100 °C
- Soldering Temperature (Tsld):
- Reflow Soldering: 260 °C po dobu 10 s
- Hand Soldering: 350 °C po dobu 3 s
- Junction Temperature (Tj): °C
- Forward Voltage (VF): 2.9 až 3.5 V (120 mA)
- Luminous Flux (MCD): 19470 - 27330 MCD (120 mA)
- Wavelength (nm): 443 - 451 nm (120 mA)
- Color of Emission:
- Color Correlated Temperature (CCT): K
- CRI: 80°
- Viewing angle: 120°
