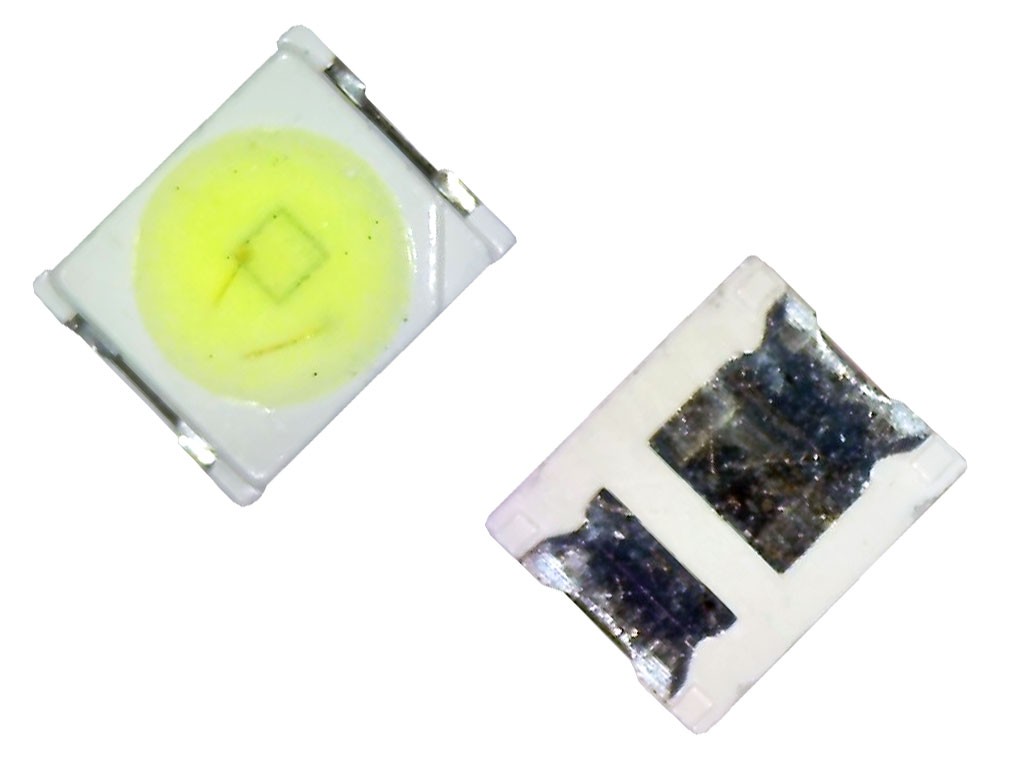

LED dióda 3528/2835 1,5W 3V LG 9000K
Katalógové číslo:
4300031800
LED dióda 3528/2835, 1,5W, 3V, 100 lm, rozmery 3,5 x 2,8 x 0,60 mm. Celý popis
0,45 €
bez DPH: 0,37 €
Na sklade > 25 ks
Možnosti doručenia
Skladem na prodejně
AME Hradec Králové
LED dióda 3528/2835 1,5W 3V LG 9000K
Rozmery: 3,5 x 2,8 x 0,60 mm, Luminous Flux: 100 lm
Technické parametre:
MODEL NAME: LATWT470RELZK LED
Výrobca: LG, anóda na väčšej ploche.
Forward Current (IF): 400 mA
Pulse Forward Current (IFp): 650 mA
Reverse Current (IR): 25 mA
Reverse Voltage (VR): 0.8-1.2 V (5 mA)
Power Dissipation (PD): 1460 mW
Operating Temperature (Topr): -30 - +90 °C
Storage Temperature (Tstg): -40 - +100 °C
Soldering Temperature (Tsld): Reflow Soldering: 260 °C for 10 secs, Hand Soldering: 350 °C for 3 secs
Junction Temperature (Tj): 135 °C
Forward Voltage (VF): 3.05-3.65 V (250 mA)
Luminous Intensity (IV): 23.5 cd (250 mA)
Color Correlated Temperature (CCT): 9000 K
CRI: 80°
Viewing Angle: 120°
Lead Frame Type LED Package: 3.5×2.8×0.60 mm, d=2.0 mm
