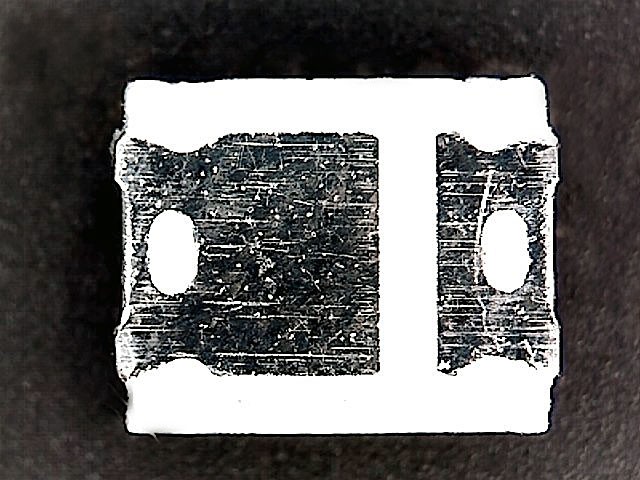

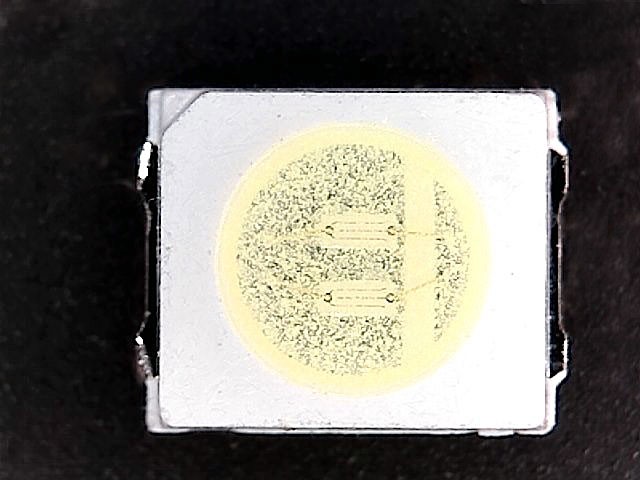

LED dióda 3528/2835 1,0W 3V pre podsvietenie
Katalógové číslo:
4300030300
Značka:
LG
LED dióda 3528/2835, výkon 1,0W, rozmery 3,5 x 2,8 x 0,60 mm, 100 lm. Celý popis
0,49 €
bez DPH: 0,40 €
Na sklade > 25 ks
Možnosti doručenia
Skladem na prodejně
AME Hradec Králové
LED dióda 3528/2835 1,0W 3V pre podsvietenie
Rozmery: 3,5 x 2,8 x 0,60 mm, výkon 1,0W, svetelný tok 100 lm.
Technické parametre:
• Forward Current (IF): 400 mA
• Pulse Forward Current (IFp): 650 mA
• Reverse Current (IR): 25 mA
• Reverse Voltage (VR): 0.8-1.2 V (5 mA)
• Power Dissipation (PD): 1000 mW
• Operating Temperature (Topr): -30 - +90 °C
• Storage Temperature (Tstg): -40 - +100 °C
• Soldering Temperature (Tsld):
Reflow Soldering: 260 °C for 10 secs
Hand Soldering: 350 °C for 3 secs
• Junction Temperature (Tj): 135 °C
• Forward Voltage (VF): 3.05-3.65 V (250 mA)
• Luminous Flux (LM): 100 lm (20 mA)
• Luminous Intensity (IV): 23.5 cd (250 mA)
• Color Correlated Temperature (CCT): 13000-17000 K
• CRI: 80°
• Viewing angle: 120°
• Lead Frame Type LED Package: 3.5×2.8×0.60 mm L×W×H d=2.0 mm
