LED Dióda 3020 3V UNI MSL-2995W
Katalógové číslo:
4300031000
LED dióda 3020 s rozmermi 3,0 x 2,0 x 1,3 mm a výkonom 0,12W. Celý popis
0,69 €
bez DPH: 0,56 €
Na sklade > 25 ks
Možnosti doručenia
Skladem na prodejně
AME Hradec Králové
LED Dióda 3020 3V UNI MSL-2995W
Rozmery: 3,0 x 2,0 x 1,3 mm | Výkon: 0,12W
Technické parametre:
MODEL NAME: MSL-299SW 3020 LED
Manufacturer: UNI
Forward Current (IF): 30mA
Pulse Forward Current (IFp): 100mA
Reverse Current (IR): 50uA
Reverse Voltage (VR): 5V (mA)
Power Dissipation (PD): 120mW
Operating Temperature (Topr): -30 - +85 °C
Storage Temperature (Tstg): -40 - +100 °C
Soldering Temperature (Tsld): Reflow Soldering: 260 °C for 10 secs | Hand Soldering: 350 °C for 3 secs
Junction Temperature (Tj): 110°C
Forward Voltage (VF): 3.0-3.5V (20mA)
Luminous Flux (LM): lm (20mA)
Luminous Intensity (IV): 1800-2200mcd (20mA)
Color Correlated Temperature (CCT):
CRI: °
Viewing angle: 120°

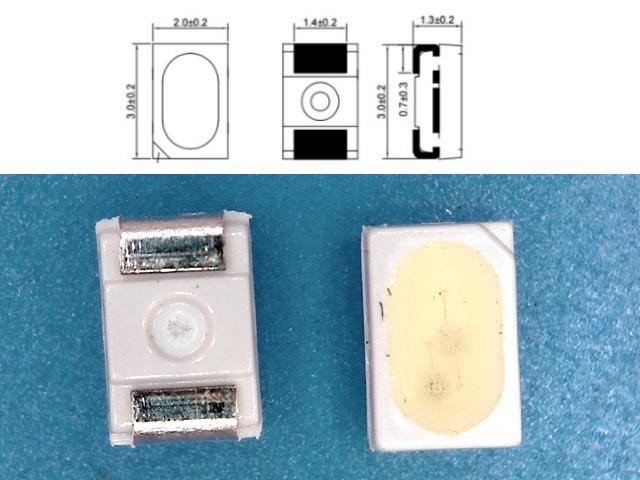

Lead Frame Type LED Package: 3.0×2.0×1.3 mm L×W×H d=mm
